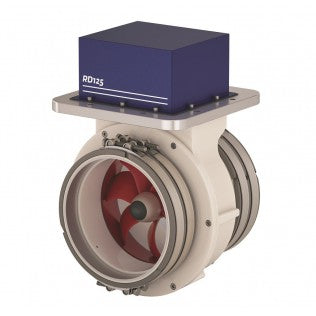

Rimdrive 125 kgf, tunneldiameter 250 mm
Artikelnummer:
RD125
98 125 kr
Enhetspris
/
Inte tillgänglig
Inkl. moms
Rimdrive 125 kgf, tunneldiameter 250 mm är restbeställd och skickas så fort den finns i lager igen.
Det gick inte att ladda hämtningstillgänglighet
Information
Information
GTIN:
Vikt:
Teknisk specifikation
Teknisk specifikation
Additional Information
| Voltage (V) | 24 V |
|---|---|
| Ignition protection | No |
| Thrust (N / kgf) | 0 - 1250 (0 - 125) |
| Power (kW) | 5,7 |
| Motor, reversible D.C. | Yes |
| Internal tunnel diameter (mm) | 250 |
| Weight (kg) | 37 |
| Current consumption (A) | 180 |
| Continuous operating time (min) | Unlimited running time |
| Max. operating time (minutes) | Unlimited running time |
| Main fuse "slow blow" (A) | 200 |
| Batteries 12 V, min./max. Ah | 4 x 50 |
| Battery cables, length pos./neg. cables (m/mm²) | 0 - 20 / 50 |
| Battery main switch: model BATSW / type BPMAIN | 250 |
| Size A in mm, see drawing | No |
| Size B in mm, see drawing | No |
| Size C in mm, see drawing | No |
| Size D min./max. in mm, see drawing | No |
| Size E in mm, see drawing | No |
| Size F, diameter in mm, see drawing | No |
| Size G min. in mm, see drawing | No |
| Size H, diameter in mm, see drawing | No |
